Researchers Unveil Breakthrough Lift System for Flapping Wing Drones

URGENT UPDATE: A groundbreaking study has just been released, revealing a revolutionary lift system for flapping wing micro air vehicles (FWMAVs) that promises to transform aerial robotics. Conducted by a collaborative team from Beihang University, Tsinghua University, and the Shenzhen International Graduate School, this research addresses critical limitations in current FWMAV technology.

The innovative lift system, inspired by hummingbirds, integrates elastic energy storage elements at the wing root, allowing for periodic energy storage and release during flight. This advancement overcomes the significant hurdles faced by existing models, which either lack controllable flight or fail to achieve high maneuverability.

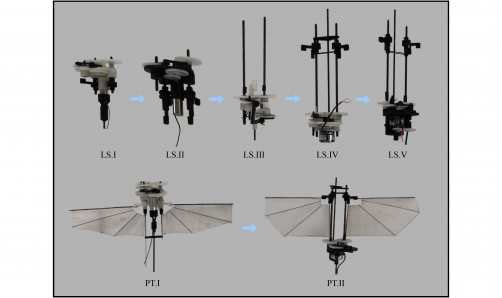

Key findings from the study include an optimized wing design named 80-455, crafted from Icarex PC31 material with a wingspan of 80 mm and a chord length of 45 mm. Remarkably, this design enhances lift generation significantly. Experimental results show that the new system can produce an impressive stable lift of 31.98 g with a total wingspan of 175 mm and a remarkably low weight of only 10.5 g.

Additionally, the research highlights a 30.4% reduction in fuselage weight—from 2.3 g to 1.6 g—without compromising structural integrity, thanks to advanced materials such as 8000 Resin and 7500 Nylon. This lightweight design is crucial for enhancing flight efficiency and maneuverability.

Flight tests confirmed that the prototype can hover for up to 1 minute at 50% throttle, demonstrating exceptional aerodynamic efficiency and reliability. The system also achieves a power consumption reduction of 4.5% under similar lift conditions, promising longer operational times for FWMAVs.

The full study, titled “Lift System Optimization for Hover-Capable Flapping Wing Micro Air Vehicle,” is authored by researchers Shengjie XIAO, Yongqi SHI, Zemin WANG, Zhe NI, Yuhang ZHENG, Huichao DENG, and Xilun DING. For those interested in the detailed findings, the paper is available at this link.

As the demand for advanced aerial technologies grows, this innovative lift system could redefine the capabilities of micro air vehicles, making them more efficient and versatile for applications ranging from environmental monitoring to search and rescue missions. Stay tuned for more updates on this exciting development in drone technology!
